Replacement parts for the Airfix ‘Mk 1’
Permalink


I’ve posted in ‘TANKS’ but realised that this might be more appropriate.  It seems that it has been nearly 9 years since I was enthusiastically creating grenade canopies, improved steering tails etc, etc for Airfix and Masterbox Mk 1s.  I have recently revisited the Airfix model to see what can be done to improve it and correct it.  Many of you will know that the various ‘improvements’ available only go some of the way to correcting the short comings.  My own efforts stalled when trying to detail the side panels on the cab and the roof of the ‘male’ sponsons.  The corrections on the roof worked tolerably well though.

Anyway, roll on 8-9 years and ‘hobby level’ 3D printing is on the scene.  I’ve suddenly got the urge to re-visit the Airfix model and have started by designing the wider cab.  My prototype print suggested that the dimensions etc were satisfactory although the rivets were too small (more accurately sized perhaps, but not matching the original).  Since that prototype was OK I’ve increased the size of the rivets by 50% and commenced adding the detail - pistol ports etc, etc.

For some reason, my attached photos appeared upside down!  Well, I turned the original upside down and - it still appeared so!  You will have to wait a while until I resolve this.

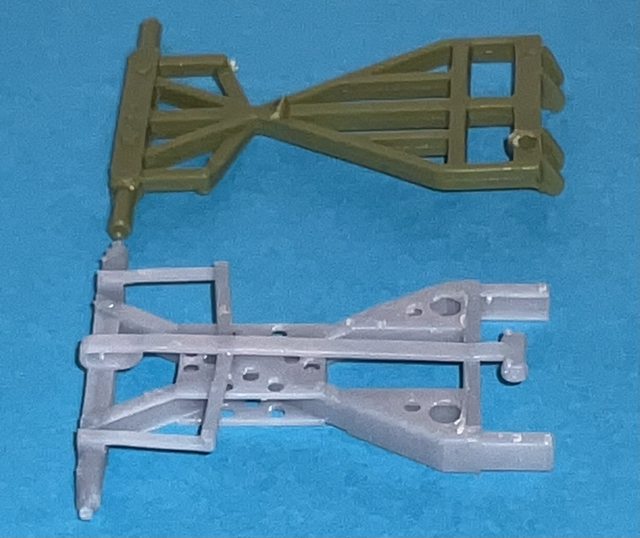

Apart from the cab, I plan to create a corrected roof, better male sponsons and the steering-tail frame.  What sort of time scale - no idea just now!



As always, I would like to thank our very own Mk1Nut, whose detailed drawings are helping enormously with this project.  Helen you are a star.


As an aside I must also thank Arie Dijkhuis - I downloaded his 1:18 scale track link, modified it to fit the Airfix track run and printed it at 1:76 scale - it is great.  I made some ‘lengths’ and also a set to go around the sharper corners - much more effective than the ‘rubber band’ tracks.




sorry about the photo - did any Mk 1s get to Australia?



-- Edited by TeeELL on Monday 18th of September 2023 09:01:45 AM

Attachments
__________________

Regards TeeELL

Growing old is compulsory, growing up is optional.



General

Status: Offline
Posts: 346
Date:
Permalink

Well, the upside down CAD drawing is irrelevant- the file has become corrupted and I have had to all but start again! Still I had managed to print an early version which proved to be a fraction too wide and prevented the tracks from fitting. I’ve addressed that and I am now starting to add the details, my 0.45mm ‘rivets’ are a good match for the originals.
I have completed the design of a corrected roof and printed it.





__________________

Regards TeeELL

Growing old is compulsory, growing up is optional.

PDA


Legend

Status: Offline
Posts: 1486
Date:
Permalink

Love it!



__________________


General

Status: Offline
Posts: 346
Date:
Permalink

Apart from the roof and the driving compartment, I have also created 3D printed tracks that come in curved sections for the ‘horns’, single lengths and 6/8/10 link lengths. I was able to ‘part dress’ one of my Mk1 tanks for the model show at the R.E.M.E Museum last weekend - the tracks certainly improve the appearance. Photos to follow.

__________________

Regards TeeELL

Growing old is compulsory, growing up is optional.



Legend

Status: Offline
Posts: 2294
Date:
Permalink



Did you check out Arie Dijkhuis' .stl files for Mark I - IV tracks on Landships II?

Charlie



__________________


General

Status: Offline
Posts: 346
Date:
Permalink

I did take a look - yes, as I mentioned in my first post.  I was only able to download the ‘single link’ .stl file which then needed significant revising for the small scale tracks.  With the single link created I then had to manually create the curved pieces and the lengths.  It should be necessary to re-scale the 1:76 tracks to 1:72 for the Airfix vs Masterbox/Emhar models, but it appears unnecessary.



-- Edited by TeeELL on Monday 9th of October 2023 09:05:09 AM



-- Edited by TeeELL on Monday 9th of October 2023 09:11:06 AM

__________________

Regards TeeELL

Growing old is compulsory, growing up is optional.



Legend

Status: Offline
Posts: 2294
Date:
Permalink

That's weird - I just tried the .zip download and it delivered the promised 4 .stl files.

When I looked at the .stls in Meshlab they appeared to be ok.

Unless it's some strange Mac OS incompatibility where the .zip is good in Macs but shit for other OSes

you should have got 4 .stls in the download (single, 8,10,12 links)

Charlie







__________________


General

Status: Offline
Posts: 346
Date:
Permalink

Oh, I downloaded all the files, just fine. However, my PC/software could not work the multi-link files. It wasn’t a significant problem as creating what I wanted from the modified single link was very straight forward.

__________________

Regards TeeELL

Growing old is compulsory, growing up is optional.

PDA


Legend

Status: Offline
Posts: 1486
Date:
Permalink

Love it! Looks great!
